Our company offers high-quality and accurate Scan to BIM services utilizing point cloud data

Our scan to BIM workflow is designed to ensure that our clients receive the highest quality 3D models in a timely and cost-effective manner. We work closely with our clients to understand their specific requirements and use our expertise to deliver customized solutions.

We provide a range of scan to BIM services, including 3D laser scan to BIM modeling, point cloud to BIM conversion, point cloud to Revit Modeling, Point Cloud to ArchiCAD, Point Cloud to As-Built 2D Drawings or, 3D modeling, 3D laser scanned data to COBie Data, etc. Our services are designed to meet the needs of a range of industries, including architecture, engineering, construction, and operations. Our team of experts is committed to delivering high-quality scan to BIM services that meet the highest industry standards. We have years of experience working with clients in India, USA, UK, Gulf countries, and Australia, and we understand the unique challenges and requirements of each market.

Scan to BIM services

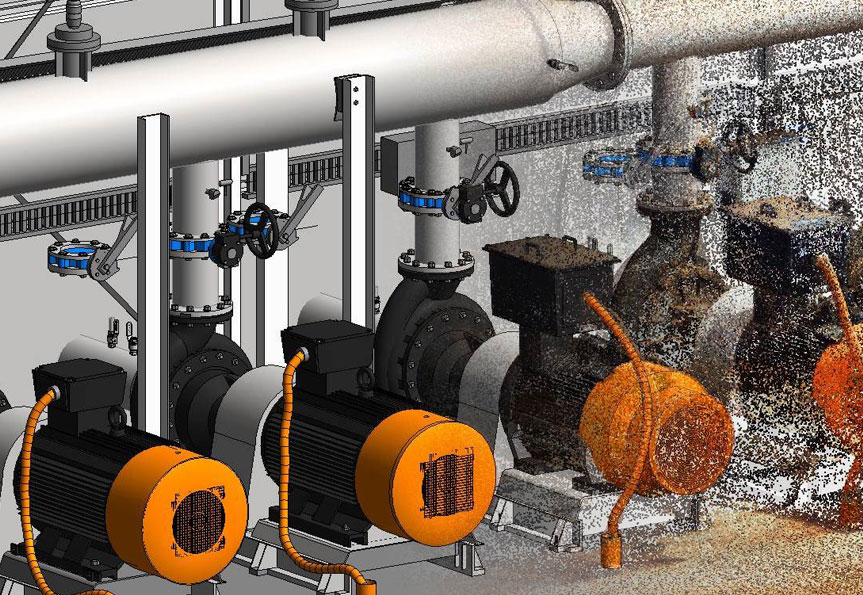

Our scan to BIM services involves using laser scanners to capture point cloud data of the physical site. This data is then processed using specialized software to create a 3D model that accurately represents real-world site conditions. Our team of experts is skilled in scan to BIM modeling and uses Revit scan to BIM software to create detailed models that meet the exact specifications of our clients. The detailed 3D laser scanned data in the form of millions of data points, i.e., the point clouds are utilized for designing, retrofitting, repairing, and renovation.

We at ASC Technology Solutions are specialized in providing scan to BIM services to the construction industry in India, USA, UK, Gulf countries, and Australia. We understand the importance of having accurate and detailed 3D models for construction projects, which is why we utilize the latest technology to create precise scan of BIM models.

Scan to BIM Services
Helping Architects globally from concept to construction documentation

Our Point Cloud to BIM Services Include

Comprehensive design-built and BIM modeling services to the architects and building owner.

startup2

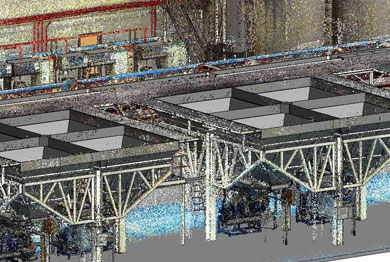

Point cloud to Revit Modeling

We are capable of producing high quality Revit BIM models from point cloud data. Dependign on the client requirement we produce the LOD 100 to LOD 500 model. We have worked on numerous projects including residential, commercial, industrical and infrastructure.
light-bulb

Point Cloud to Archicad Modeling

We have inhouse team of Archicad workign on pointcloud to Archicad modeling projects. We have completed numberous scan to archicad projects globally. The workflow include robust quality control process to ensure high quality delivery.
humanpictos

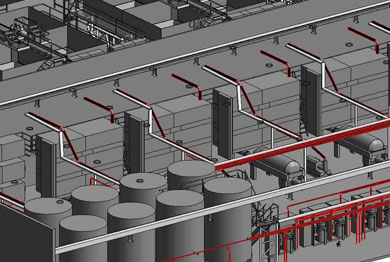

Point Cloud to As-Built Drawings

As built drawings are the representation of the existing condition of the building on paper with annotation and tagging. After makign the 3D model our team use the same model to extract the as-built drawings with accurate dimensions and markings.
target

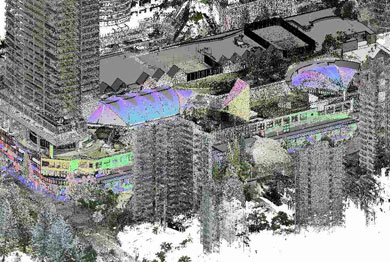

Scan to BIM & COBie

We create the BIM models and attach the asset management and facility management data to them. We create the LOD 500 scan to BIM model along with COBie data so that the same model can be used to manage the facility or the asset.

Why choose ASC Technology Solutions Scan to BIM services?

  1. Expertise and Experience: Our team of experts has years of experience working with clients in a range of industries, including architecture, engineering, and construction. We have the knowledge and skills to deliver high-quality scan to BIM services that meet the specific needs of our clients.
  2. Cutting-Edge Technology: We use the latest technology and software such as Archicad, Revit, Navisworks, BIM360, SkechUp, AutoCAD, Allplan, Vectorworks, etc. This enables us to deliver high-quality 3D scan to BIM services that meet the highest industry standards.
  3. Customized Solutions: We work closely with our clients to understand their specific needs, and we use our expertise to deliver customized solutions that meet their unique requirements. Whether you need a 3D scan to BIM modeling, point cloud to BIM conversion, or Revit scan to BIM modeling, we can deliver the right solution for your project.
  4. Timely and Cost-Effective: We understand the importance of delivering scan to BIM projects in a timely and cost-effective manner. Our scan to BIM workflow is designed to ensure that our clients receive high-quality 3D models within their budget and timeframe.
  5. Quality Assurance: We have a rigorous quality assurance process in place to ensure that our scan to BIM models meets the highest industry standards. Our team of experts carefully executes multiple layers of checks and reviews each model to ensure accuracy and completeness.
Scan to BIM Services

Scan tO BIM Modeling Process

1

Scanning

The first step in the scan to BIM process is to capture point cloud data using laser scanning technology. The data is collected from multiple angles and positions to ensure complete coverage of the site.
2

Processing

The point cloud data is then processed using specialized software to create a 3D model of the site. The data is cleaned and filtered to remove any noise or unwanted elements.
3

Modeling

The 3D model is then created using scan to BIM modeling software. The model includes all the necessary elements, such as walls, floors, ceilings, doors, windows, etc.
4

Revit Integration

The 3D model is integrated into Revit software to create a Revit scan to BIM model. This enables the model to be used for building design, construction, and management purposes.
5

Quality Assurance:

The final step in the scan to BIM process is quality assurance. We follow 3-layer QC process. Hence, the model is carefully checked and reviewed by experts to ensure accuracy and completeness.

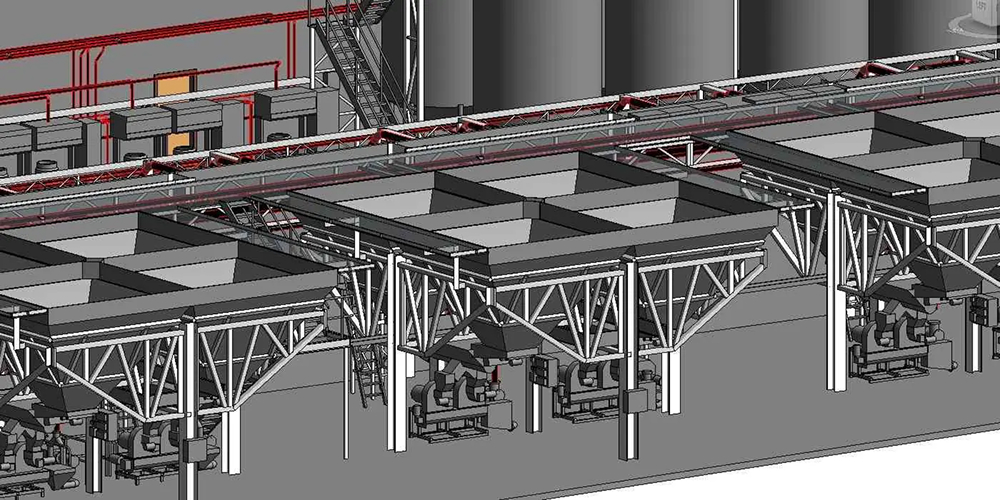

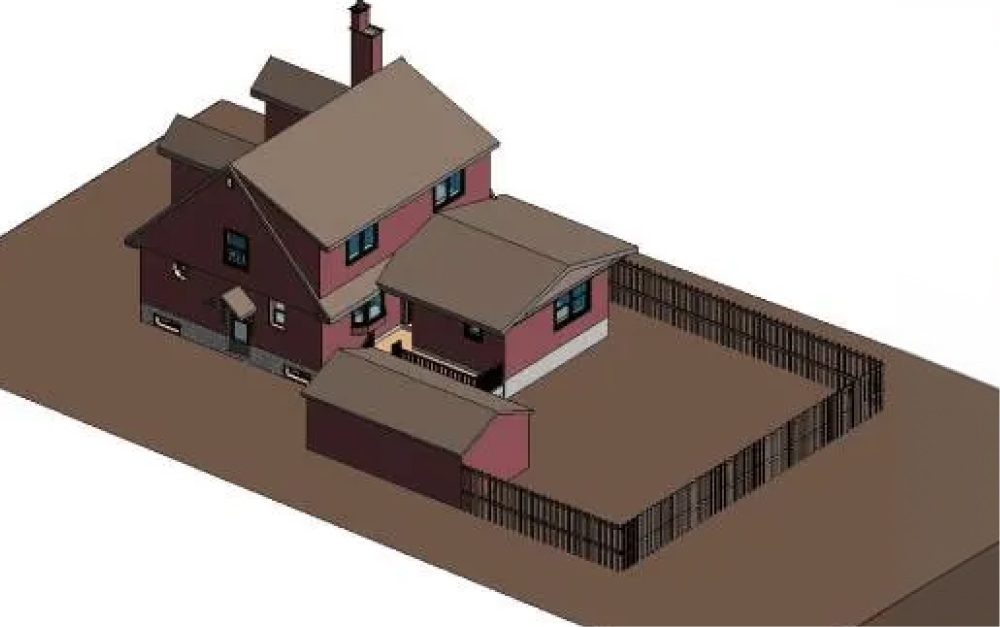

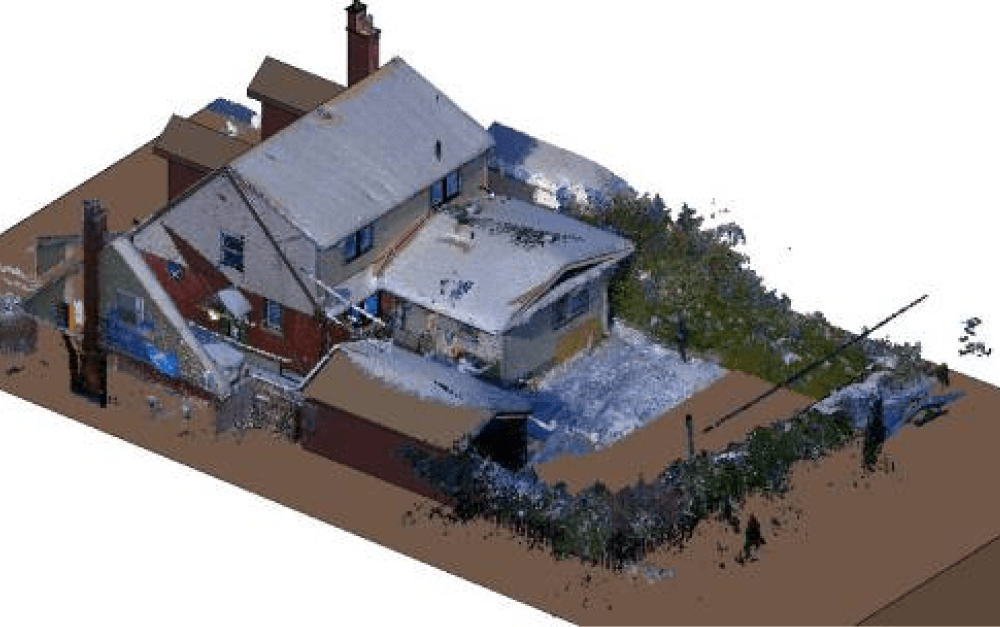

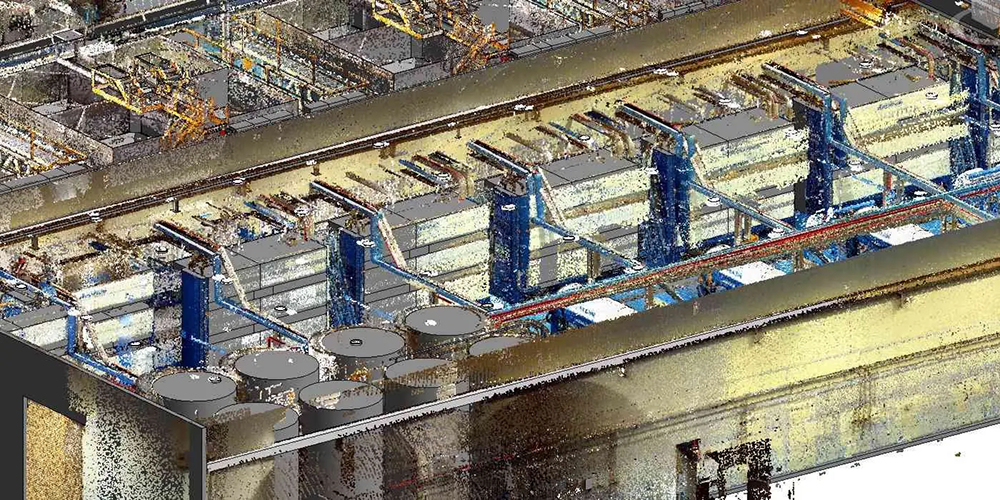

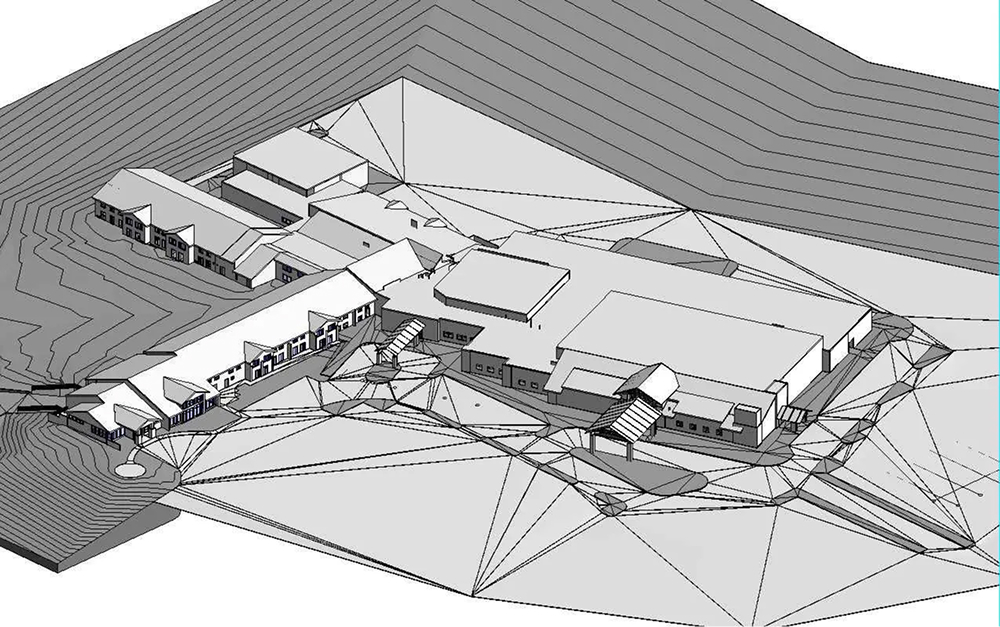

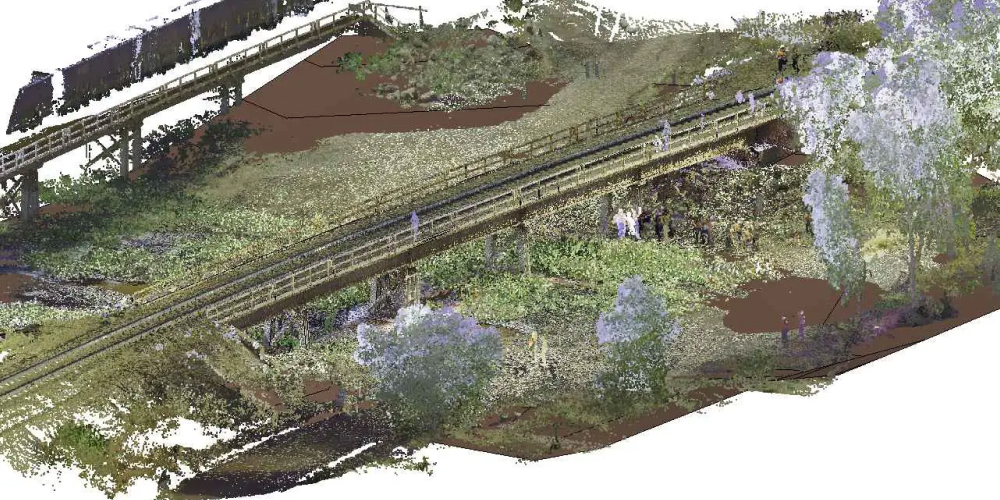

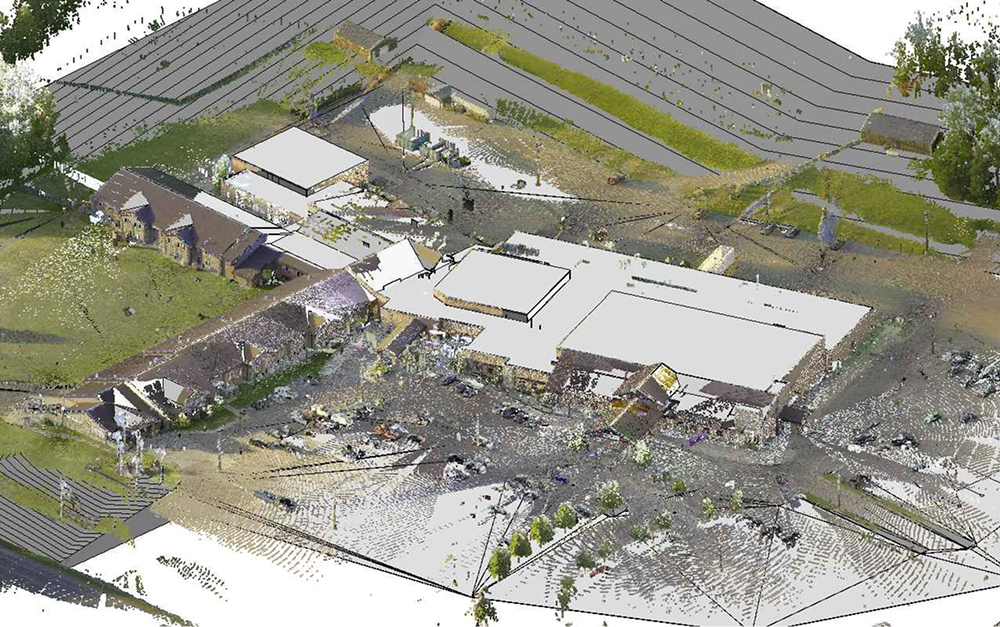

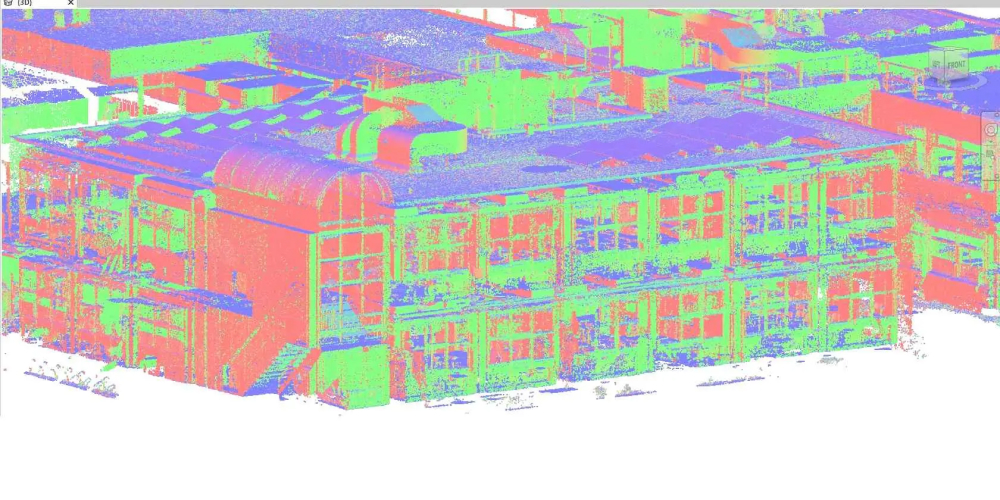

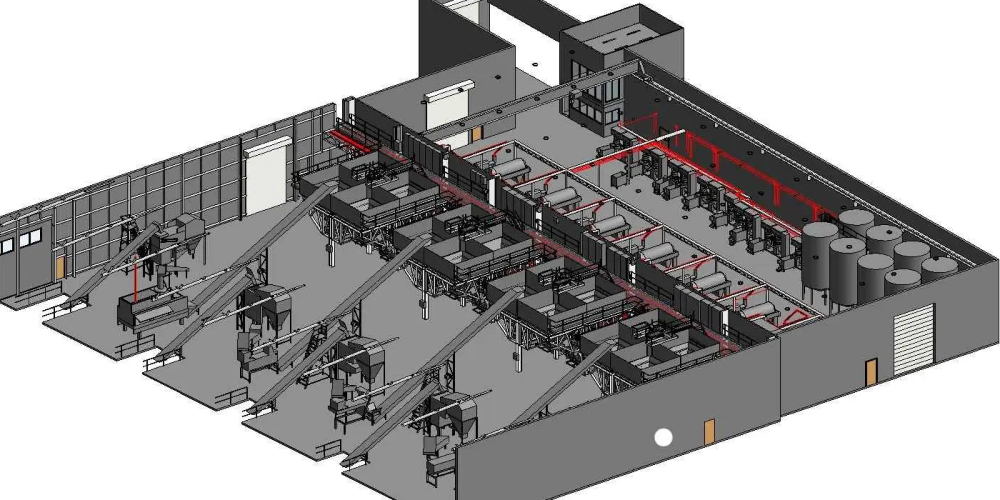

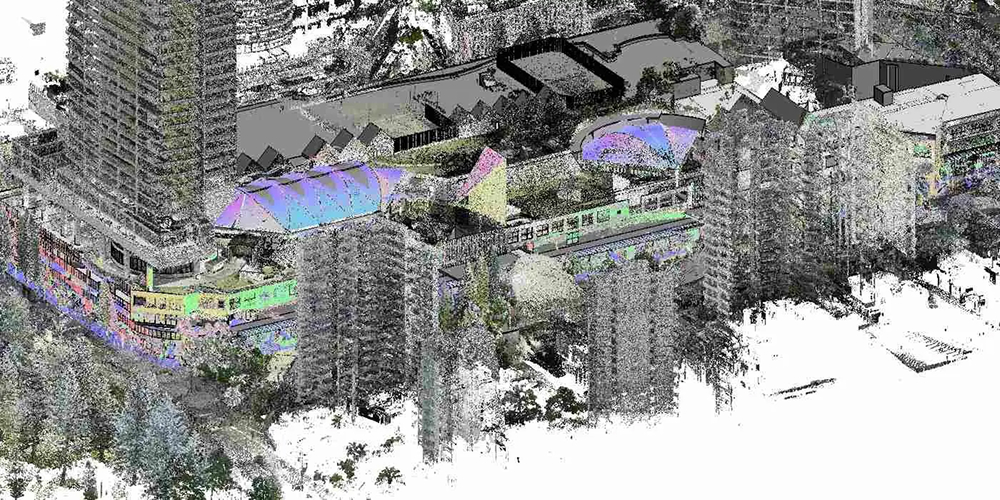

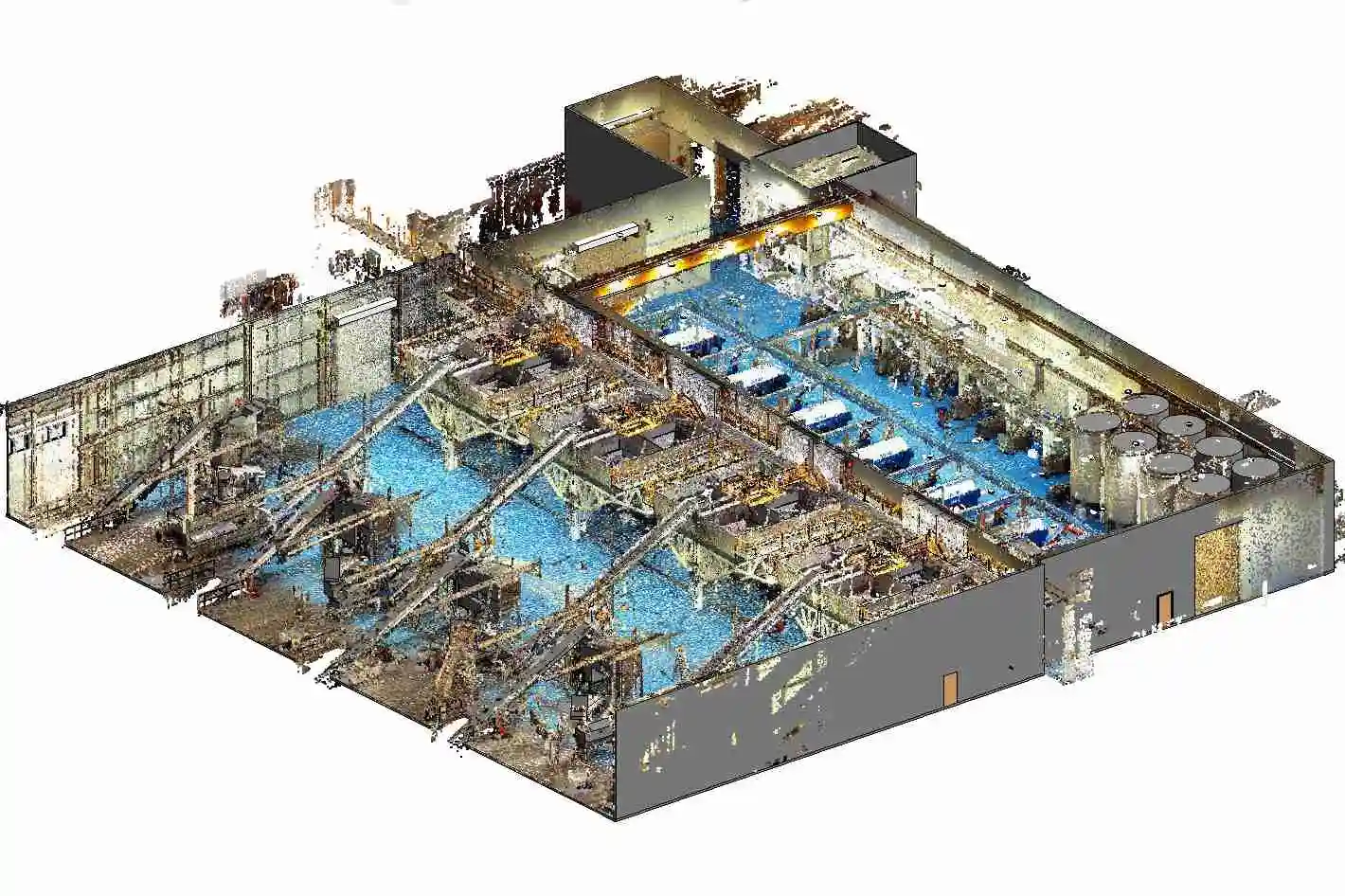

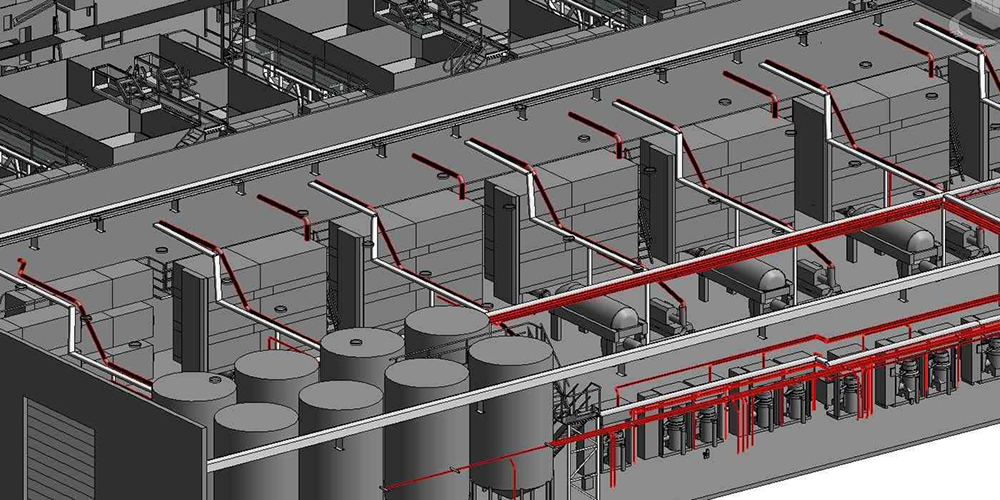

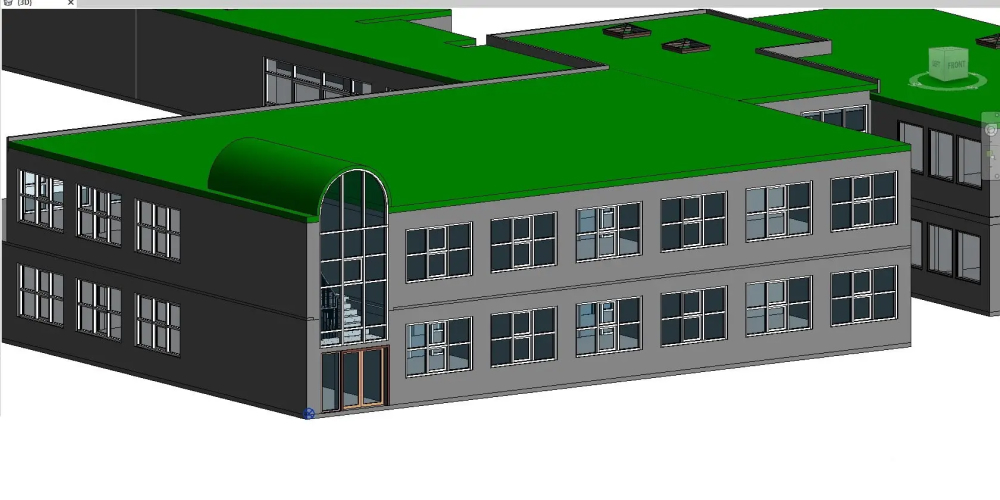

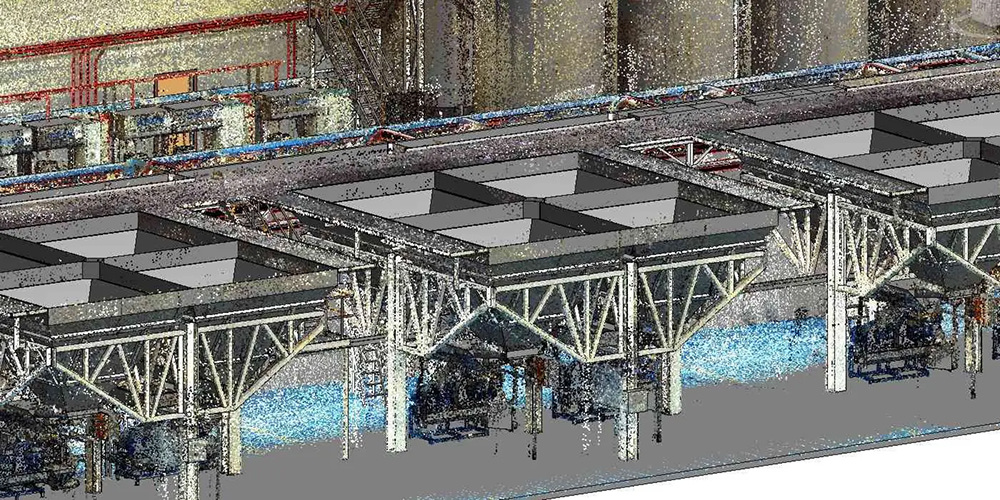

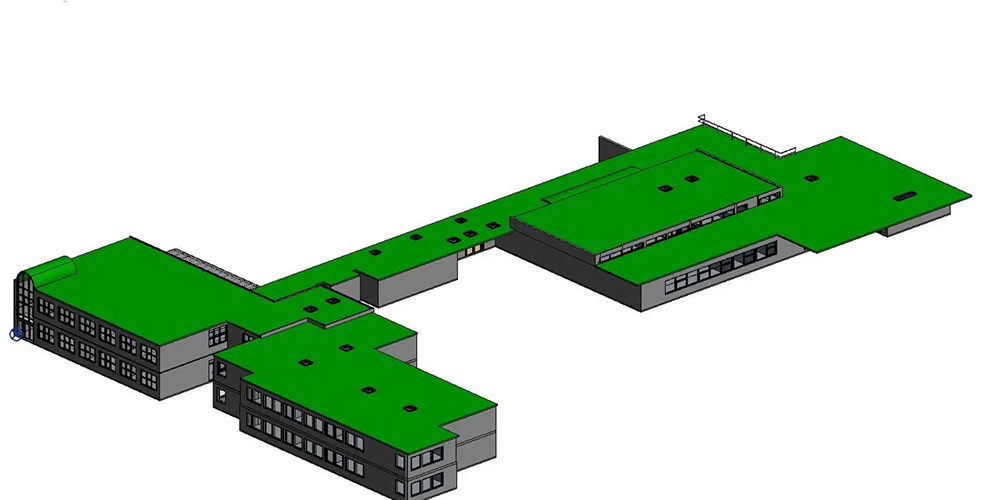

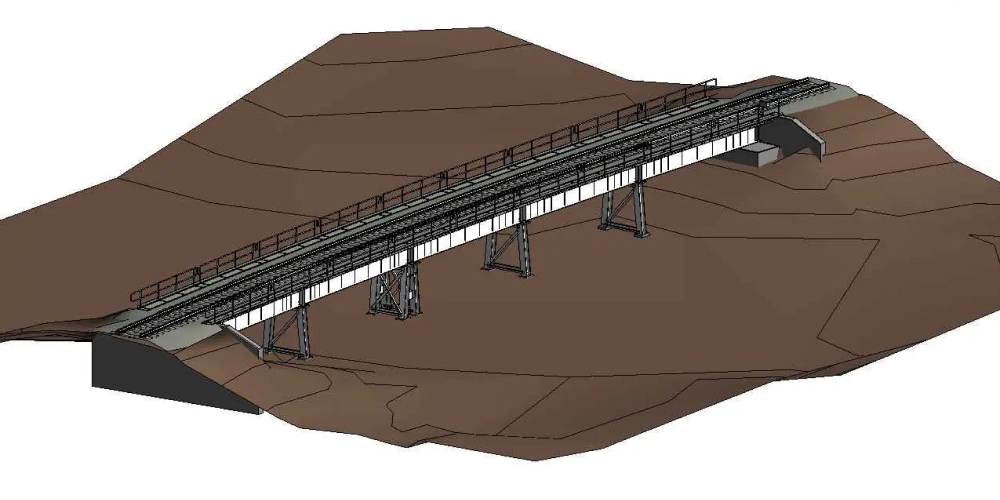

Our Scan to BIM Modeling Samples

Scan to BIM ServicesScan to BIM Services
Scan to BIM LayoutScan to BIM Services layout
Scan to BIM Services LayoutScan to BIM Services Layout
Architectural BIM ModellingScan to BIM
Scan to BIM ServicesScan to BIM Services
Point cloud ModellingScan to revit

Our Projects

We believe in excellence and pay high attention to the quality of the deliverables

Opera-House-project

Opera House - Oslo

The Opera house is situated in Norway having an area of approx. 47000 square meters ( 500000 square feet. The client approached us for the detailed BIM scan to BIM model creation from the point cloud. Our team completed the Job in l30 days.
Auglendsmyra -1

Commercial

This commercial building was having an area of approx. 400000 square feet (Approx. 37000 square meters). We have completed the LOD 300 3D BIM model from point cloud data in less than 20 days. The building is situated in Europe.
Dalane School -1

School

We have worked on numerous educational projects. The area of the school was approx. 300000 ( Approx. 28000 square meters). The scope of the project was to create the LOD 400 BIM model using point cloud and the as-built drawings.
Huset-Vaart--OP1

Mixed Use

This project is located in Europe and we have worked closely with our client to complete the digital twin of this project. The requirement was to create the BIM model along with the as-built drawings. The area of the project was 350000 square feet.
Kalana Garden-2

Residential

This property is located in the USA. Our client was a surveyor and they completed the scanning of the building for the purpose of renovation. We have created the 3D BIM model from the supplied point cloud data and followed the client's QA/QC process.
Marske Hall -2

Heritage

We are experts in creating complex objects in Revit using models in place and Revit families. This project required a lot of complex modeling of heritage buildings including the tower and clock. The 3D BIM model was generated with an accuracy of 20-30 mm tolerance.

FREQUENTLY ASKED QUESTIONS

Scan to BIM is the process of converting 3D laser scan data into a digital model. The digital representation of point cloud data is utilized for asset management, retrofit, design, evaluation, etc.

Typically, our clients send us data in multiple point cloud formats such as .pts, .ptx, .ptg, .las .rcs/RCP, .pod etc. As a point cloud modeling company, we have software technologies and in-house expertise to process and register any industry point cloud file.

It is helpful in multiple ways. As a point cloud modeling service provider company, we generate the 3D model for our clients that help them with clash detection, asset management, asset digitization, 2D documentation, renovation, etc.

There are multiple ways that we can help you. You may reach us by dialing +1 (407) 733 0839 and we will set us a quick meeting to get details about your project for estimation, you can email us at info@localhost:8081/asctechno or, simply fill out the contact form and share your project information we would happy to help you.

Yes, scan to Revit services & Scan to ArchiCAD services both are our expertise

Being the leading scan to BIM services provider based in India our expert BIM modelers are capable of efficiently using several CAD and BIM software such as Autodesk Revit, Navisworks, AutoCAD, ReCAP Pro, Plant 3D, ArchiCAD, BIM 360, etc. to deliver the project timely at a cost-efficient price.
